The most important thing to know in Cassandra data modeling: The primary key

Patrick McFadin, Chief Evangelist for Apache Cassandra, DataStax Patrick-150x150

Patrick is regarded as one of the foremost experts of Apache Cassandra and data modeling techniques. As the Chief Evangelist for Apache Cassandra and consultant for DataStax, he has helped build some of the largest deployments in the world. Previous to DataStax, he was Chief Architect at Hobsons, an education services company. There, he spoke often on Web Application design and performance.

The title for this article could really stand alone, but I’m not going to just leave it at that! Yes, this is a fundamental rule for Apache Cassandra, but I’m going to take some time to explain why that statement is correct. With relational data modeling, you can start with the primary key, but effective data models in an RDBMS are much more about the foreign key relationships and relational constraints between tables. Since using a JOIN isn’t possible with Cassandra, we have much less complexity creating data models. The complexity trade-off for Apache Cassandra is in knowing about your queries and data access patterns ahead of time. I won’t be going into how to accomplish that here. There is an excellent course available on DataStax Academy for that topic. This article will focus on how and why to best pick a primary key.

The basic primary key

Let’s start with the most basic table. These can be called a “Static table” or “Entity table” which are used to store a single record of data. Here is an example from the KillrVideo example application:


   videoid uuid,

   userid uuid,
   name varchar,

   description varchar,
   location text,

   location_type int,
   preview_thumbnails map<text,text>,

   tags set<varchar>,

   added_date timestamp,

   PRIMARY KEY (videoid)


The PRIMARY KEY designation is the simplest form. A single parameter that identifies a single video uploaded to our system. The first element in our PRIMARY KEY is what we call a partition key. The partition key has a special use in Apache Cassandra beyond showing the uniqueness of the record in the database. The other purpose, and one that very critical in distributed systems, is determining data locality.

When data is inserted into the cluster, the first step is to apply a hash function to the partition key. The output is used to determine what node (and replicas) will get the data. The algorithm used by Apache Cassandra utilizes Murmur3 which will take an arbitrary input and create a consistent token value. That token value will be inside the range of tokens owned by single node.

In simpler terms, a partition key will always belong to one node and that partition’s data will always be found on that node.

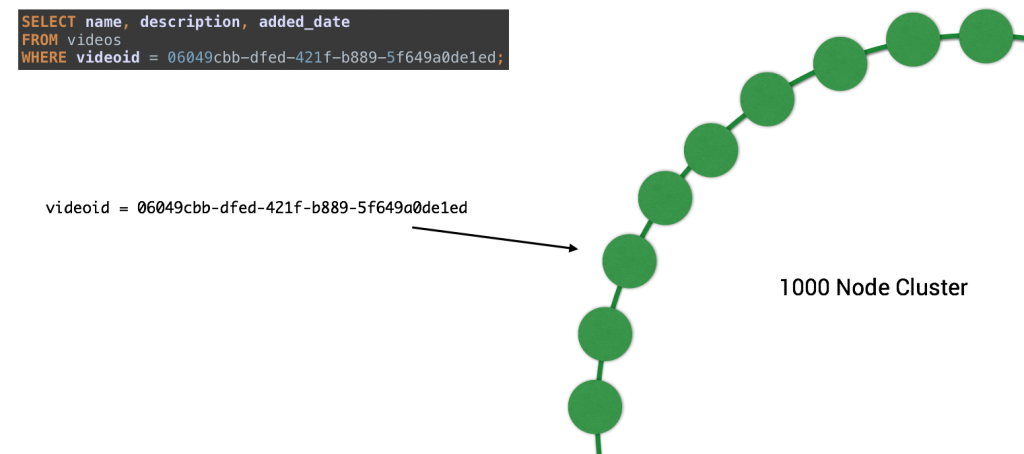

Why is that important? If there wasn’t an absolute location of a partition’s data, then it would require searching every node in the cluster for your data. In a small cluster, this may complete quickly, but in much larger cluster it would be painfully slow. We want what is shown below.


Complex primary key

The other type of table in Apache Cassandra is what we will call a “Dynamic table.” Let’s first look at another example from KillrVideo:

CREATE TABLE user_videos (
   userid uuid,
   added_date timestamp,
   videoid uuid,
   name text,
   preview_image_location text,
   PRIMARY KEY (userid, added_date, videoid)

In this table, we are satisfying the query “show me all videos associated with a specific user.” As you can see, the PRIMARY KEY now has more than the partition key, we have now added more elements. All columns listed after the partition key are called clustering columns. This is where we take a huge break from relational databases. Where the partition key is important for data locality, the clustering column specifies the order that the data is arranged inside the partition. The way we read this is left to right:

  • Item one is the partition key
  • Item two is the first clustering column. Added_date is a timestamp so the sort order is chronological, ascending.
  • Item three is the second clustering column. Since videoid is a UUID, we are including it so simply show that it is a part of a unique record.

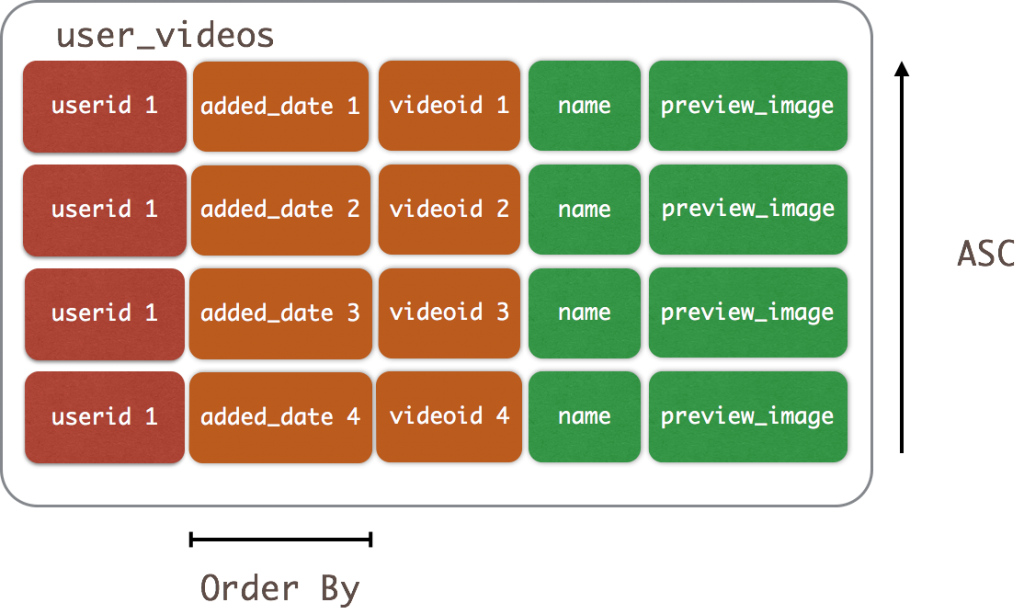

After inserting data, you should expect your SELECT to return data in the ascending order of the added_date for a single partition in ascending order.


Controlling order of the clustering columns

Since the clustering columns specify the order in a single partition, it would be helpful to control the directionality of the sorting. We could accomplish this run time by added an ORDER BY clause to our SELECT like this:

FROM user_videos
WHERE userid = 522b1fe2-2e36-4cef-a667-cd4237d08b89
ORDER BY added_date DESC;

What if we want to control the sort order as a default of the data model? We can specify that at table creation time using the CLUSTERING ORDER BY clause:

CREATE TABLE user_videos (
   userid uuid,
   added_date timestamp,
   videoid uuid,
   name text,
   preview_image_location text,
   PRIMARY KEY (userid, added_date, videoid)
) WITH CLUSTERING ORDER BY (added_date DESC, videoid ASC);

Now when we insert data into user_videos the data will be pre-sorted to added_date in descending order.


This may seem like a pre-optimization, but the use cases this addition enables are very compelling. When CLUSTERING ORDER BY is used in time series data models, we can now quickly access the last N items inserted. As an example:

FROM user_videos
WHERE userid = 522b1fe2-2e36-4cef-a667-cd4237d08b89

What this query is asking for is “the last 10 videos the user uploaded” A very fast, useful and efficient query enabled by a simple addition of the CLUSTERING ORDER BY clause. You can see how this might be very useful in cases of user interaction or fraud use cases.


In this quick overview of the PRIMARY KEY relationships, I hope you see how important this is not only to your queries but also how your store your data. Some basic understanding of the components can help you make some informed choices in your next data model. For example, now that you understand a partition key controls data locality, it’s probably best to not use just one! An extreme example, but one that you could easily make without knowing the reasoning behind it. Now that you know the most important thing to know in Cassandra data modeling, what are you going to do with it? Build something awesome!
